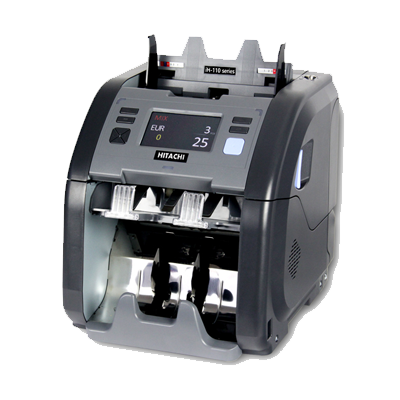

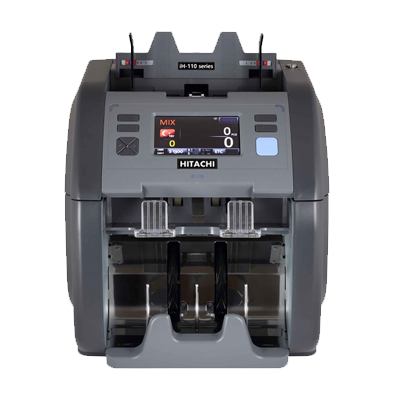

BRAND NAME: HITACHI

* Products No. : iH-110 Series

* Products Class: CURRENCY SORTER

* Made In: KOREA

* Technology From: JAPAN

* Function:

- iH-110 : Basic type

- iH-110S : Basic type + Color scanner for Cheque & Ticket

- iH-110F : Basic type + Fitness sorter

- iH-110FS : Basic type + Fitness sorter+ Color scanner for Checks & Tickets

- iH-110B : Barcode scanner


High-speed image processing technologies

  1. Full Color Dual CIS
  2. Capture and Record of OCR, MICR and Barcode / Deposit full color images
  3. Can be installed more than 40 currencies
  4. Mix & Multi currency mode (Count mixed currencies and automatic recognition)

Advanced sensor technologies

  1. Equipped with range of counterfeit detection technologies.
  2. Reliable fitness sorting
  3. Excellent tape detection performance







Remote monitoring system by 'SIM'

  1. Connect with SIM link

User-friendly system

  1. 2 Teller mode indicator and Multi user mode available
  2. 4.3” Full color touch screen
  3. Easily look up the all sensor data
  4. Simple and easy operation
  5. Easy maintanance

iH-110 series is an ideal choice for :

  1. Bank branches, Casinos, Exchange offices, Public offices, Retailers, Cash centers


SPECIFICATION

CF Detection:
UV, MG, MT, IR, FL, CIS, Ultrasonic
Operating Speed:
Value Counting with counterfeit detection
Max 1300 NPM
* Note per minute
(can be installed more than
40 currencies):
Fitness sorting with counterfeit detection
Capture and Record : OCR, MICR, Tickets, etc.
Capture and Record : Full color image with OCR
Max 900 NPM
* Note per minute
Pocket Capacity:
Hoper
iH-110/iH-110S/iH-110B : 500 Notes
iH-110F/iH-110FS : 100 Notes

Reject
60 notes(Max 100 notes)

Stacker
200 notes(Max 300 notes)
Display:
4.3” Full Color LCD Touch Screen
Interface:
LAN(Giga), USB(H), USB(S), RS232C
Weight:
iH-110/iH-110S/iH-110B : 13kg
iH-110F/iH-110FS: 14.5kg
Currency:
Up to 40 currencies, 16 currencies(Mix & Multi)
Mode:
Mix(Face, Orientation) / Different Denomination(Face, Orientation) / Count / Serial No. / Fitness / etc
Dimensions(W/D/H):
iH-110/iH-110S/iH-110B : 300 x 320 x 315mm
iH-110F/iH-110FS : 300 x 320 x 345mm
Power Supply:
100 – 240V ±10%, 1.2A – 0.6A, 50/60Hz
Options:
External LCD display / OSD(On Screen Display : Video surveillance system) / Thermal printer
Sensor info.:
Full Color dual CIS : 8 Images, IR transmission, IR reflection, RGB
Full line magnetic sensor (16 Channel)
Thickness(Tape) /Double detection sensor (12 Channel / 2 Channel)
UV Reflection(4 Channel), Transmission(4 Channel), Fluorescence (4 Channel)
