BRAND NAME: TRUE TRUST

Products No. : M1-AIR

Products Class: VACUUM COUNTER

Country of Origin: TAIWAN

Function: Batch Count

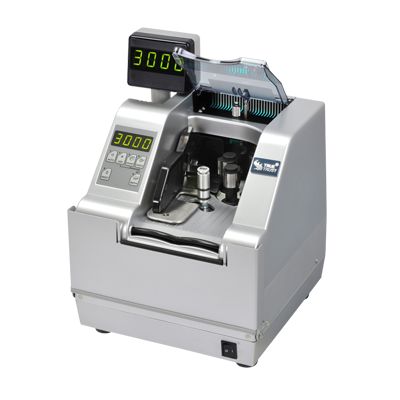

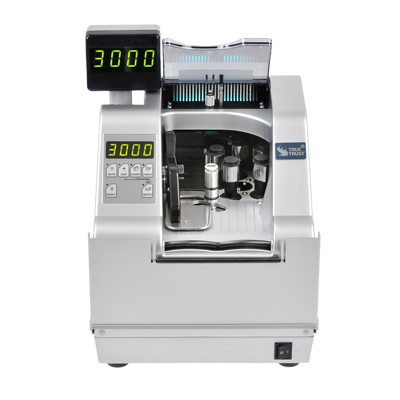

M1 Air Vacuum Counter, The appearance is the floor stand.

New Feature:

  • Counting Speed is faster: 300 notes per minute, or 100 notes in 2 seconds
  • Dust-Guide Lid: When the machine starts to work, it closes automatically to prevent the dust from spreading
  • Ultraviolet Germicidal Lamp: Purify the air around the machine
  • Note Plate: For you to put banknote in a better order before counting

Feature:

  • Smaller footprint that other models so can be used in areas with limited space
  • Poratble: the console model has wheels for easy mobility
  • Reset Mode: just press a button to reset
  • LED Displays: one display is for the user and the other rotates 270˚ for the customer display
  • Air Filter System: automatic cleaning of dust
  • Safety Module Clamp: protects the operator from injury

Counting Modes:

  • Check Mode: verifies a known quantity in a bundle
  • Count Mode: provides rapid and continuous counting of bundles with varying quantities
  • Add Mode: several quantities can be totaled and displayed
  • Batch Mode: provides quick batching of any number of notes
  • Alarm Checking Mode: if the count does not match the checking quantity, the feed-plate locks and an alarm sounds to alert the operator of the discrepancy

8 Self diagnostic Tests:

  • Vacuum pressure test
  • Holder test
  • Rotor test
  • Batch stop lever test
  • Display test
  • Simulated counting test for 100 notes
  • Test of rotor standard parameter
  • Test of vacuum pressure parameter


SPECIFICATION

Feed system:
Vacuum
2 LED displays / 4 Digits

Countable note size:
Length : 90 ~ 300mm
Width : 55 ~ 130mm
Thickness:
0.06 ~ 0.12mm
Holder capacity:
200 notes
Counting speed:
100 notes / 2 seconds 3000 NPM
Dimensions:
(W)260mm (D)260mm (H)285mm
Cover open height:
95mm
Weight:
19.5Kgs
Power consumption:
330W/50.60Hz
Power supply:
90 ~ 130V (50 / 60Hz) 180 ~ 260V (50 / 60Hz)
Options:
RS232 connector
